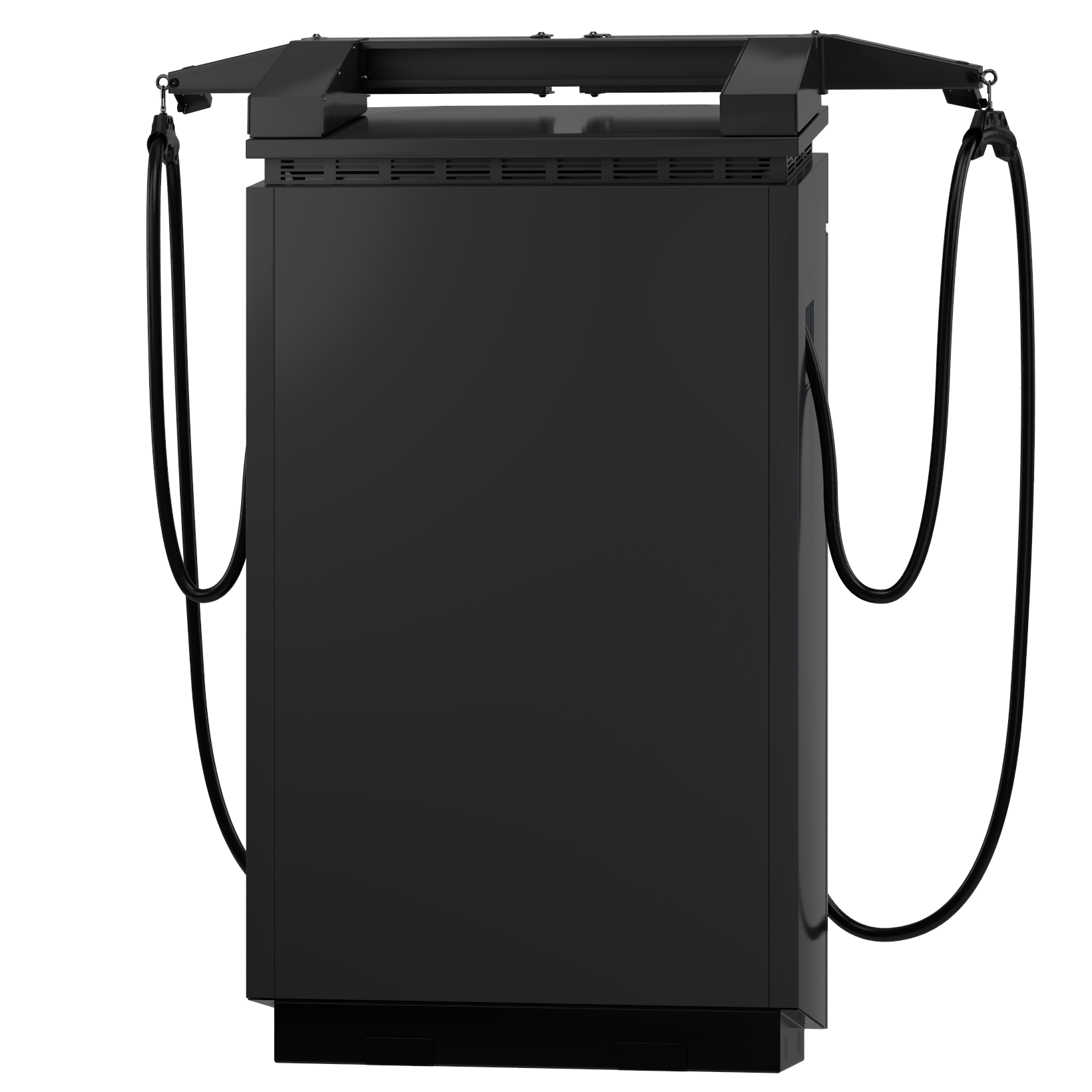

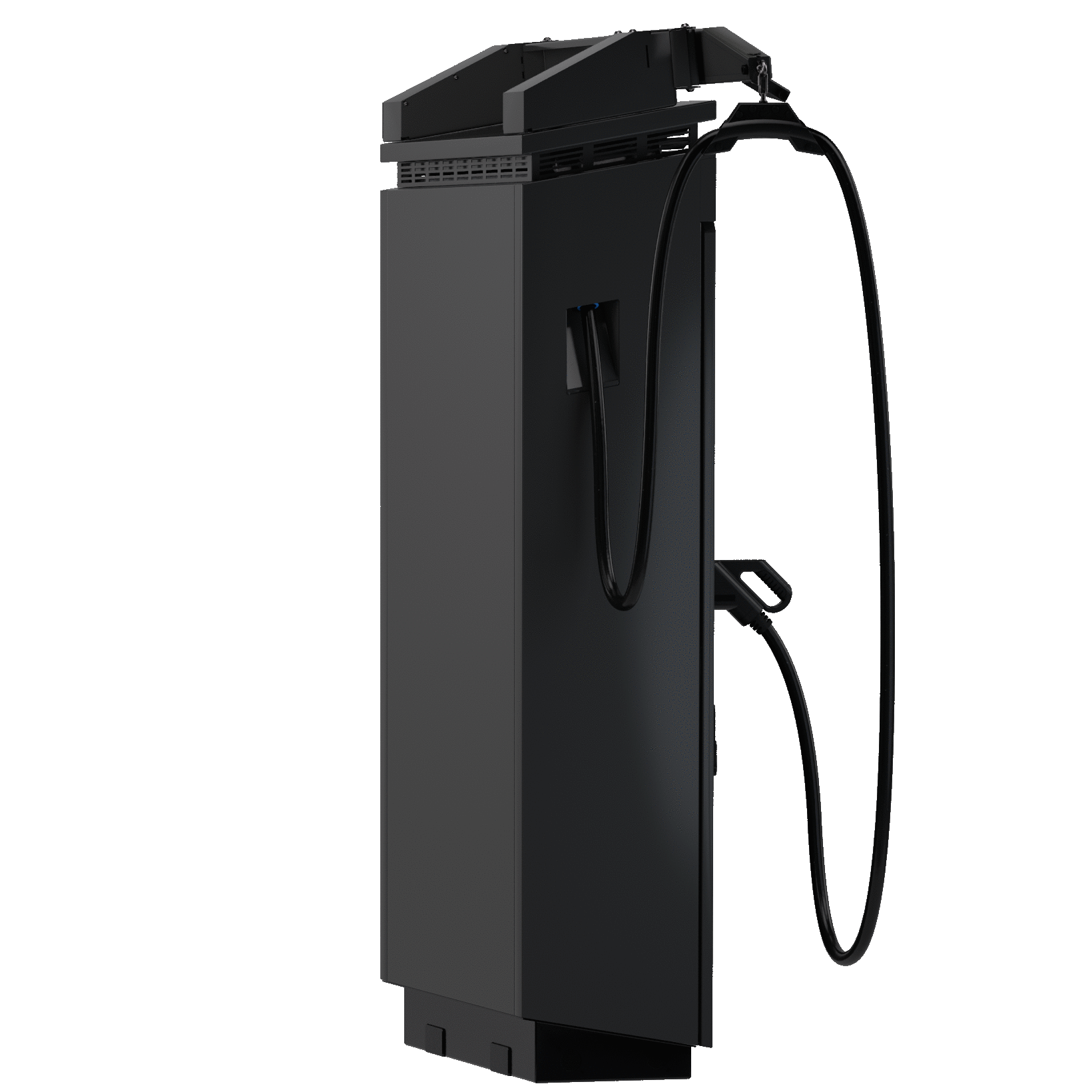

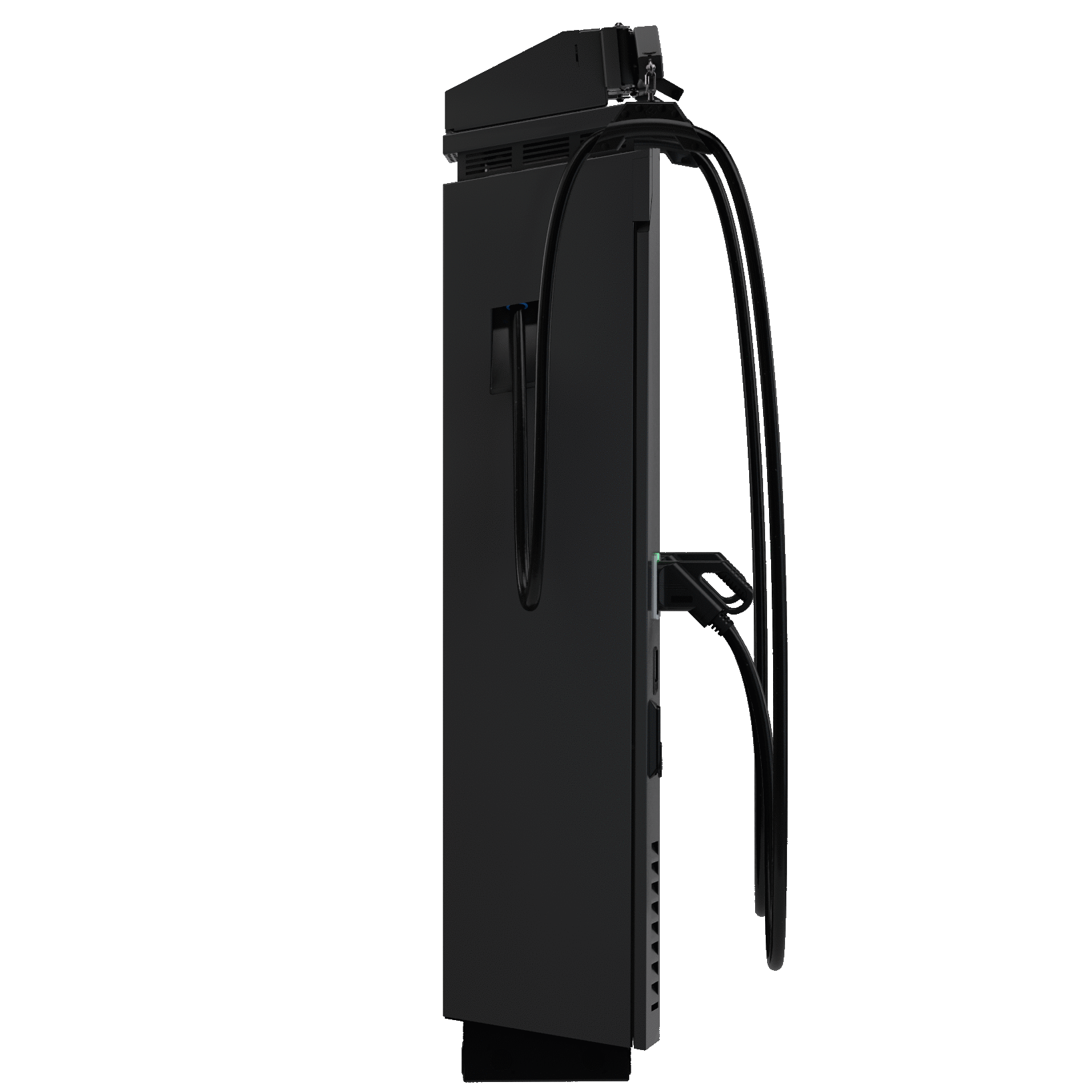

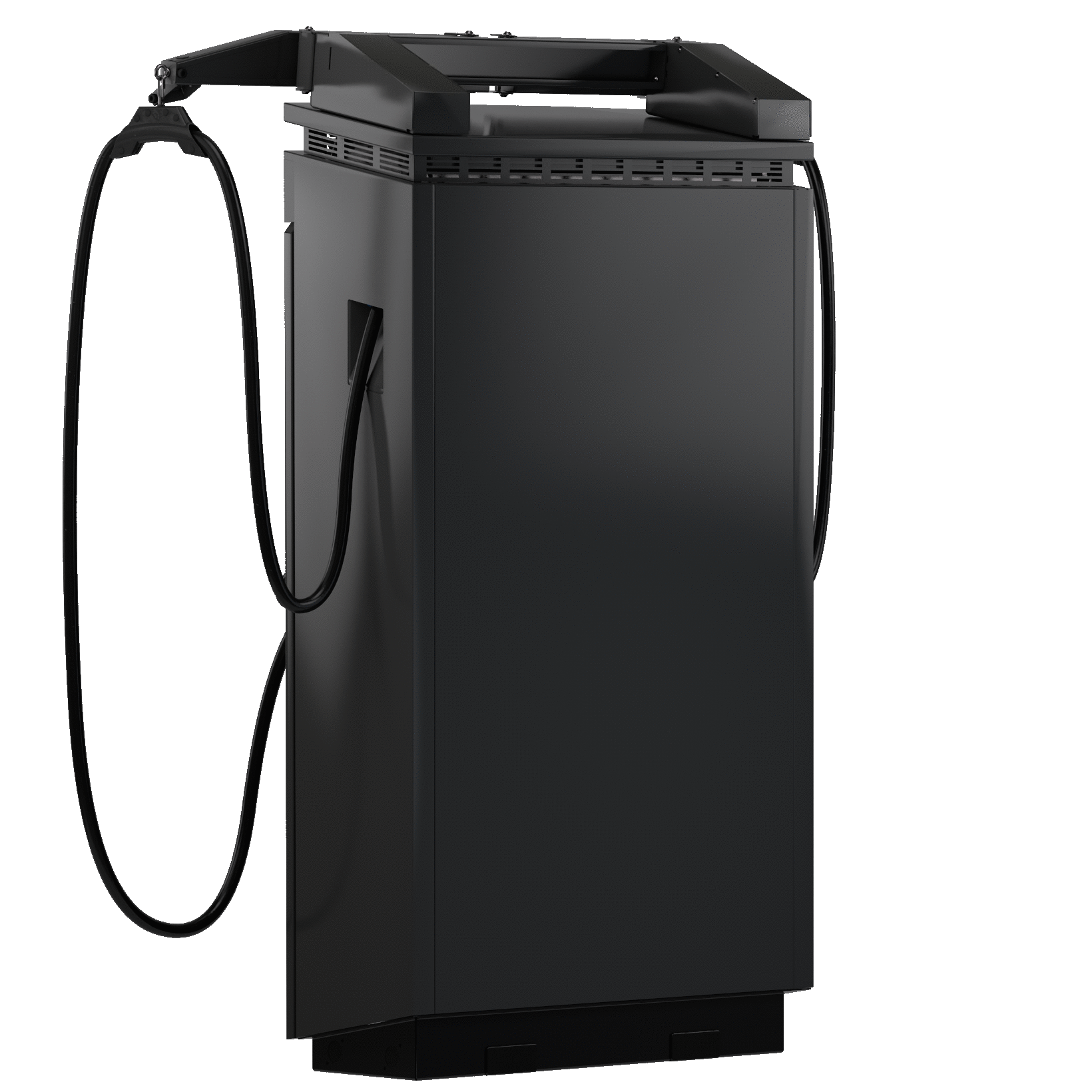

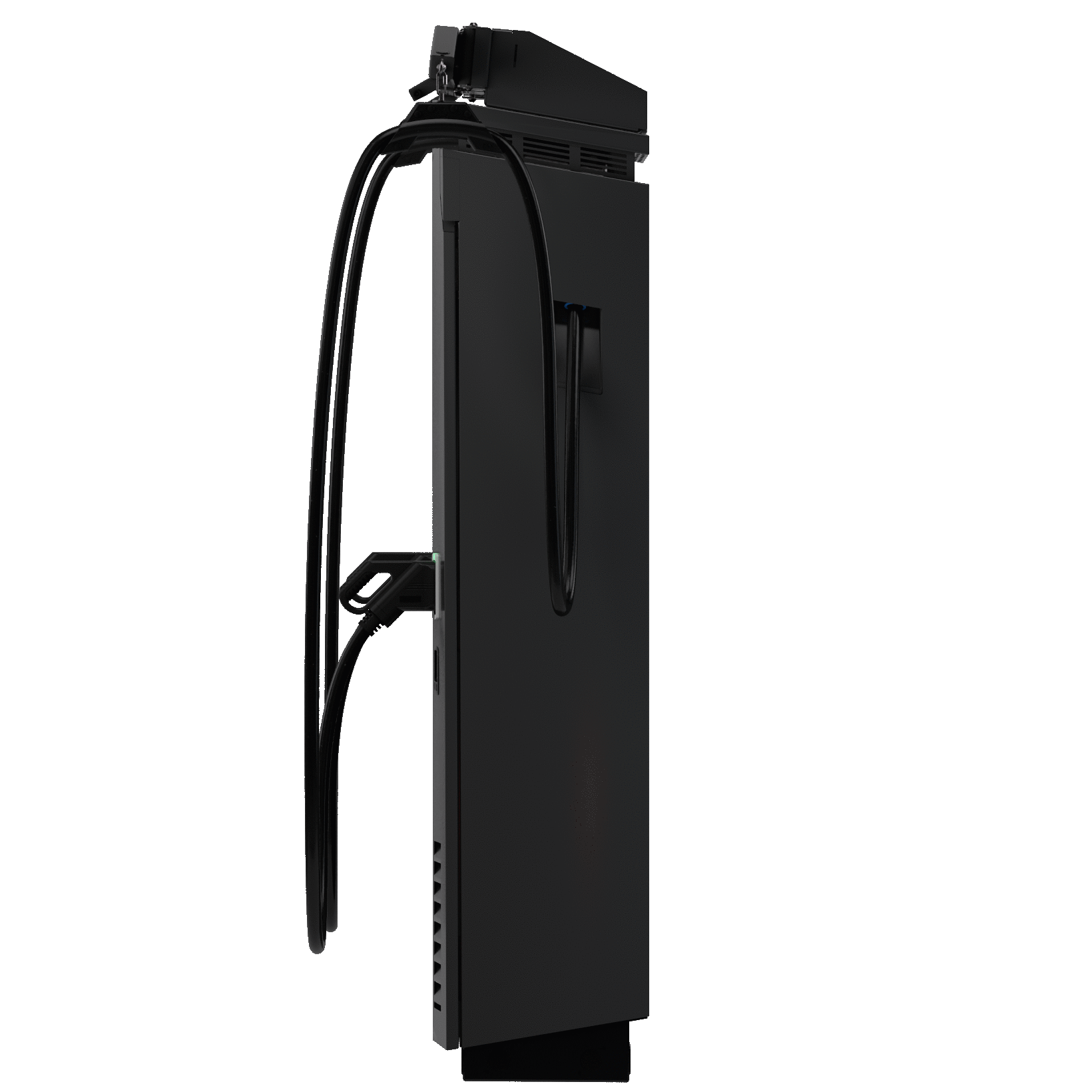

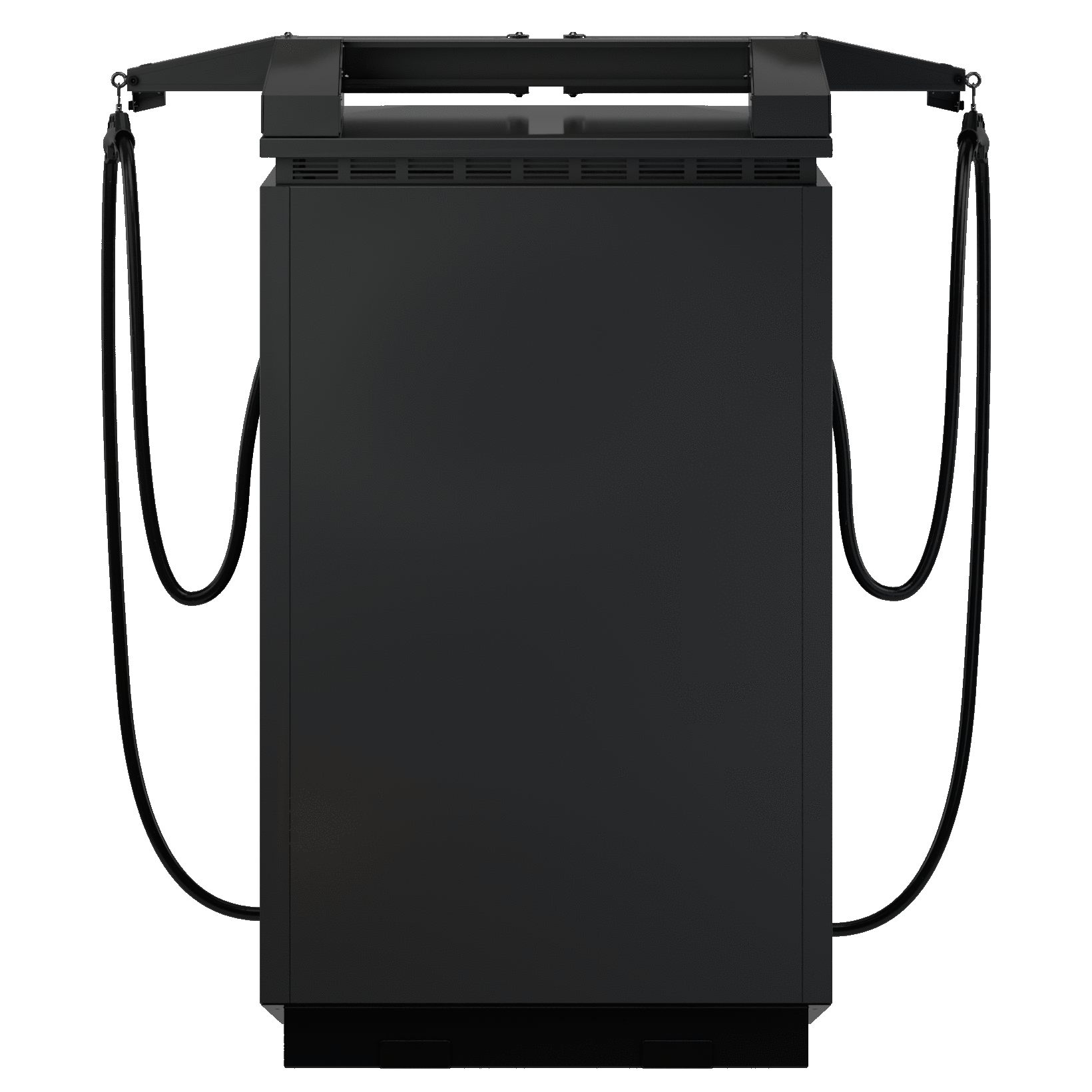

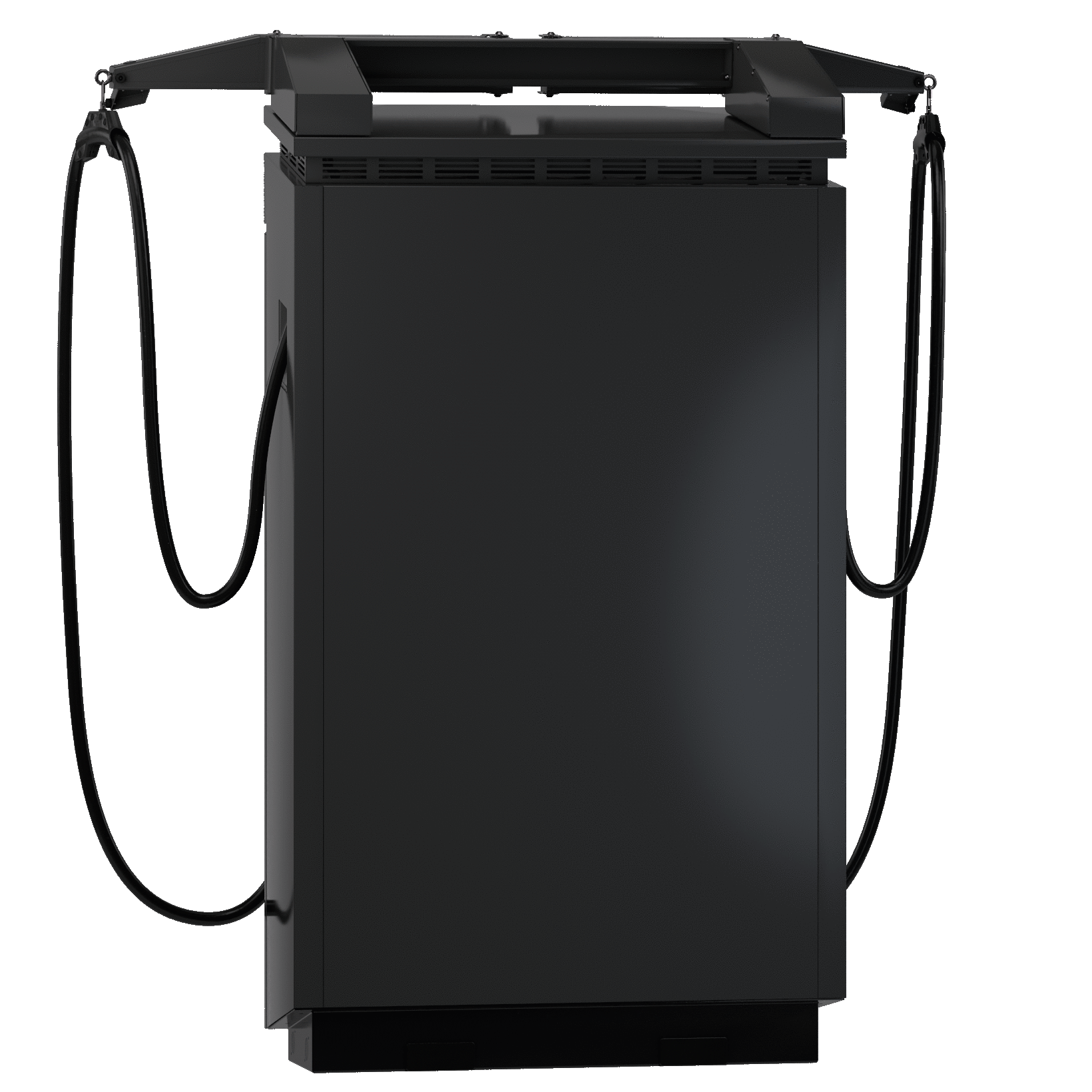

360°

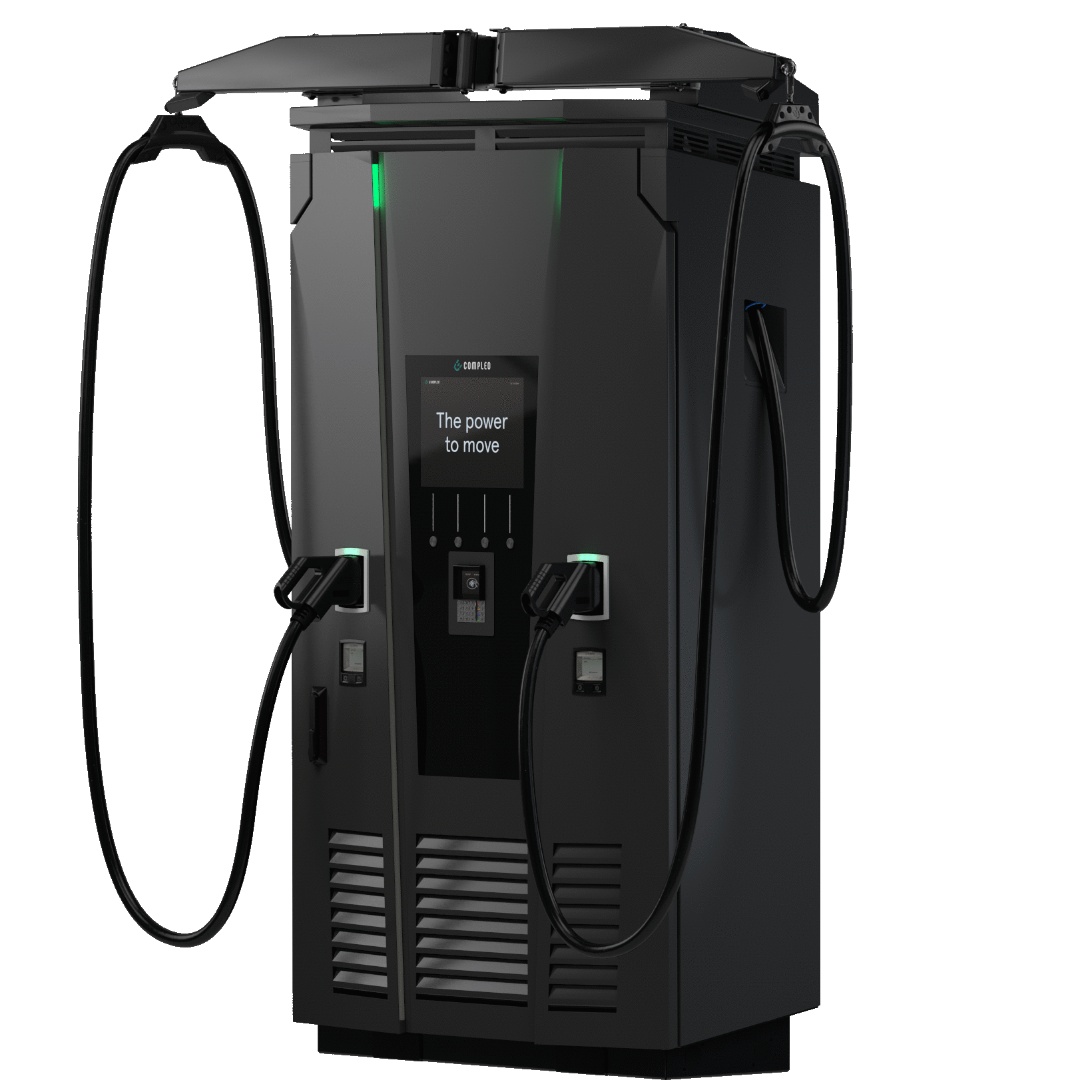

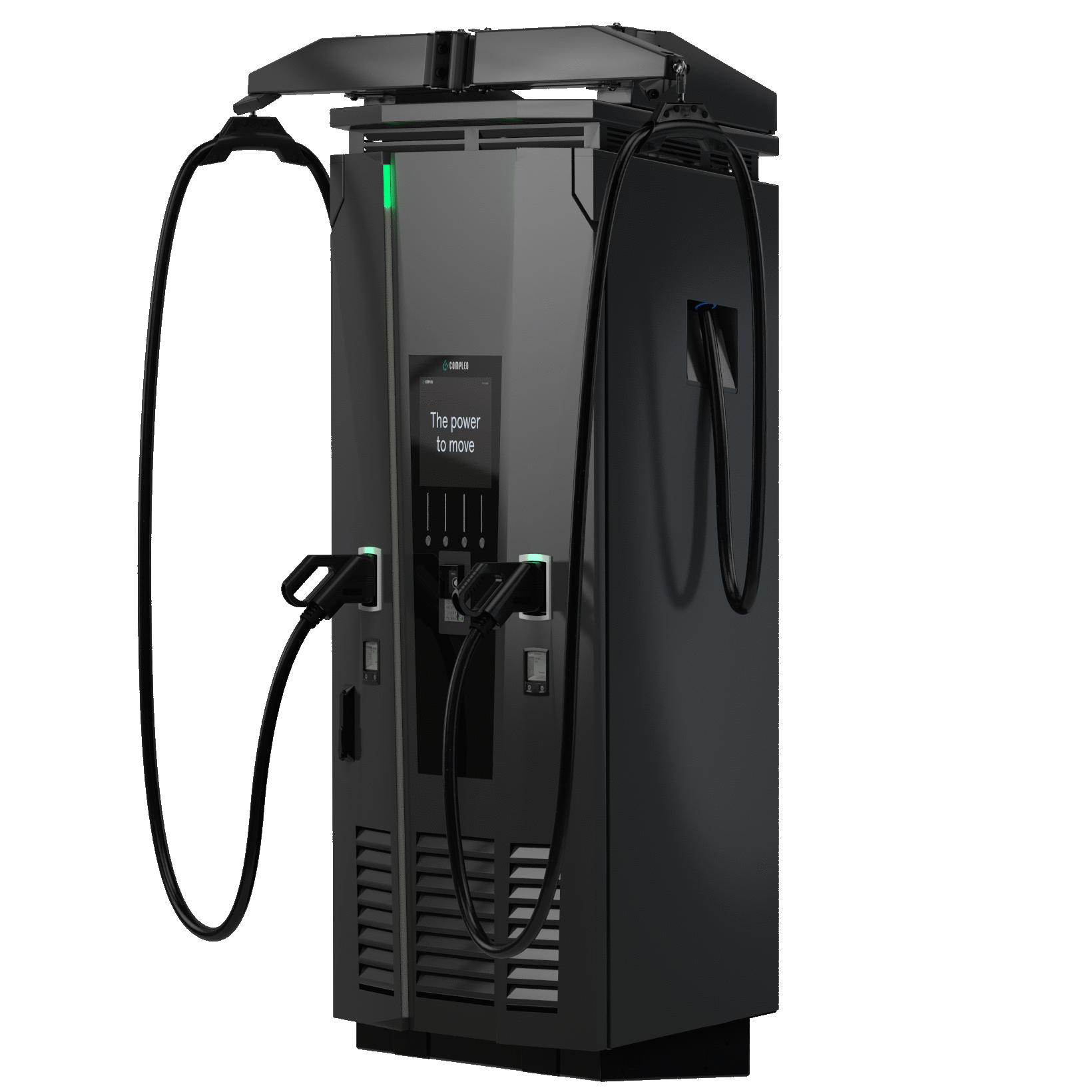

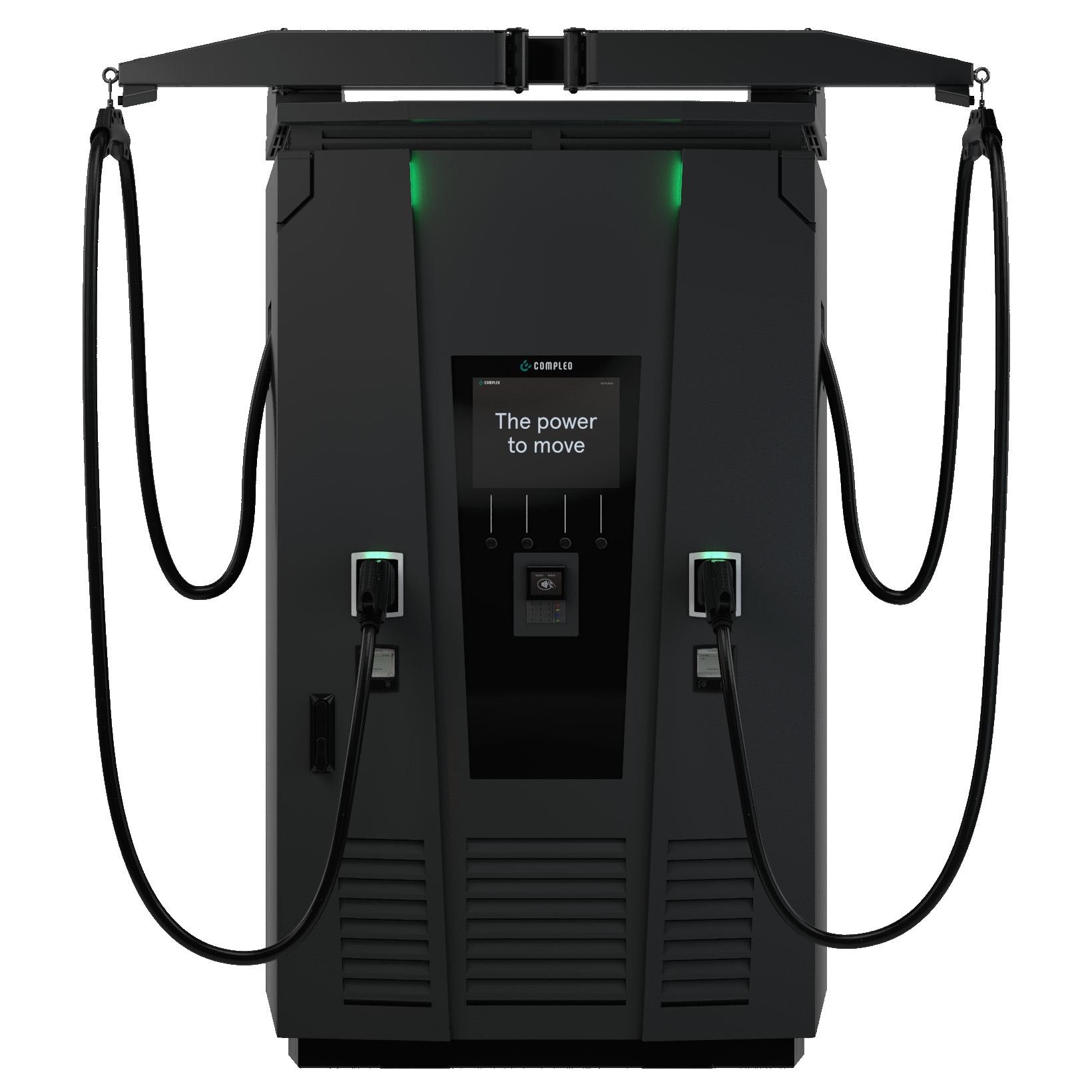

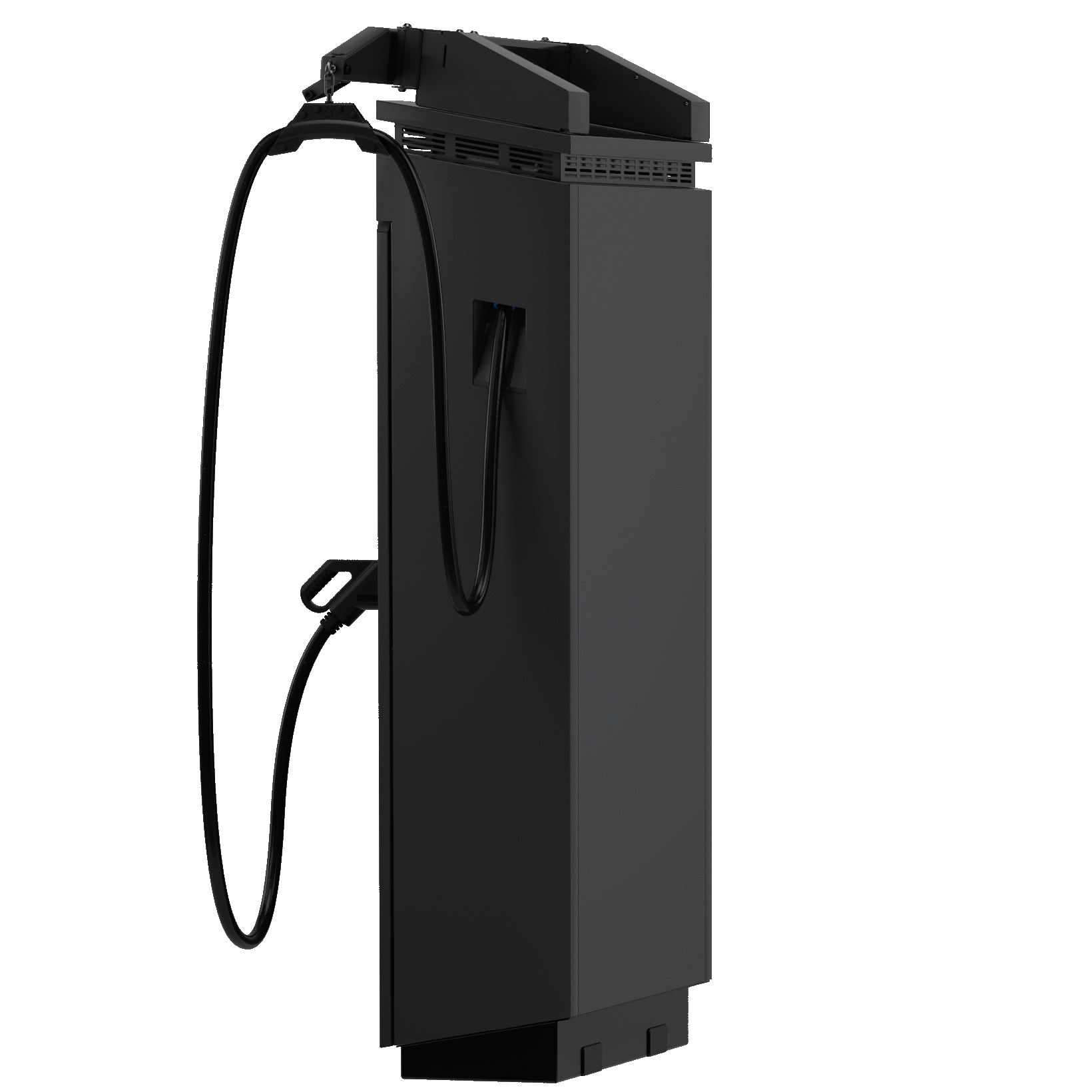

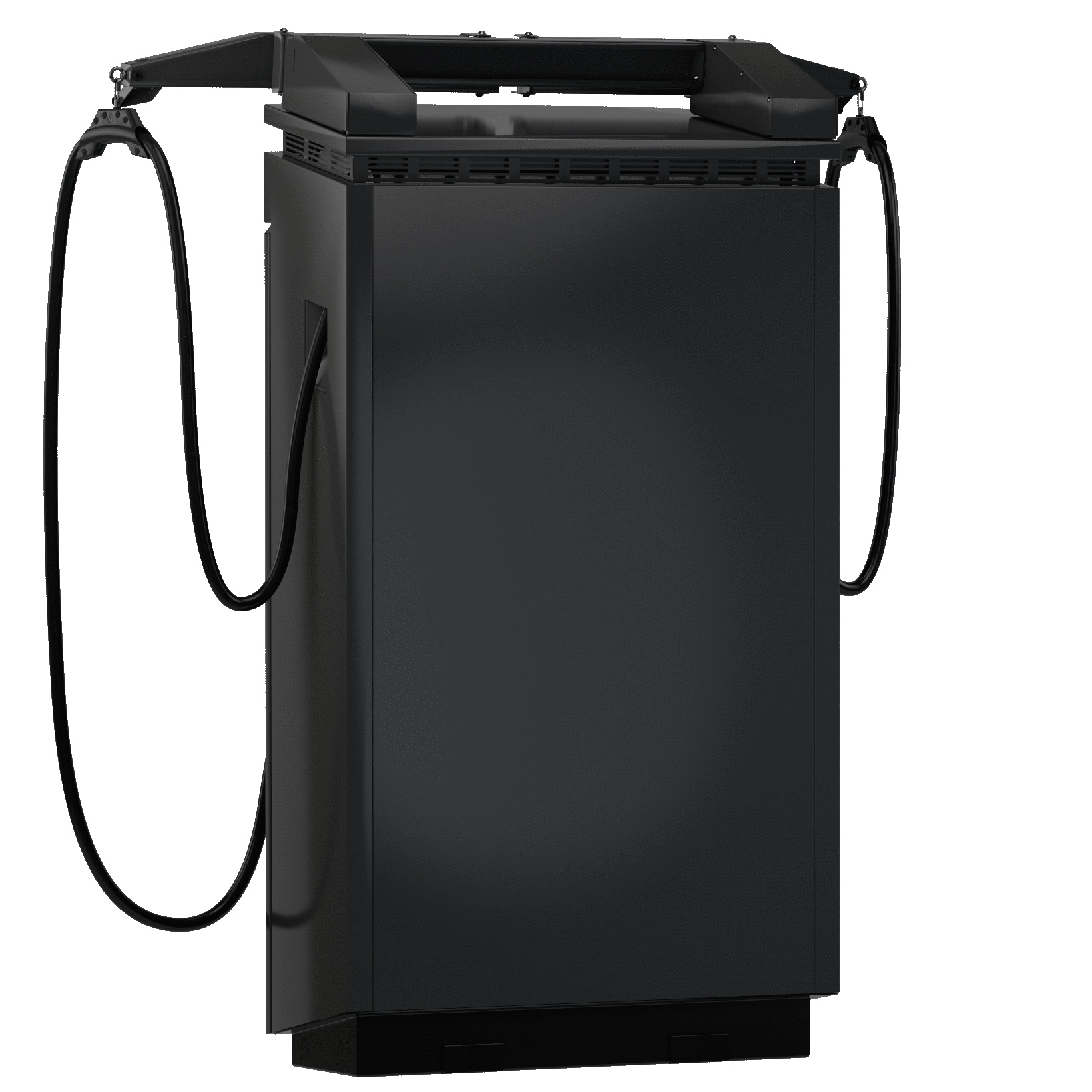

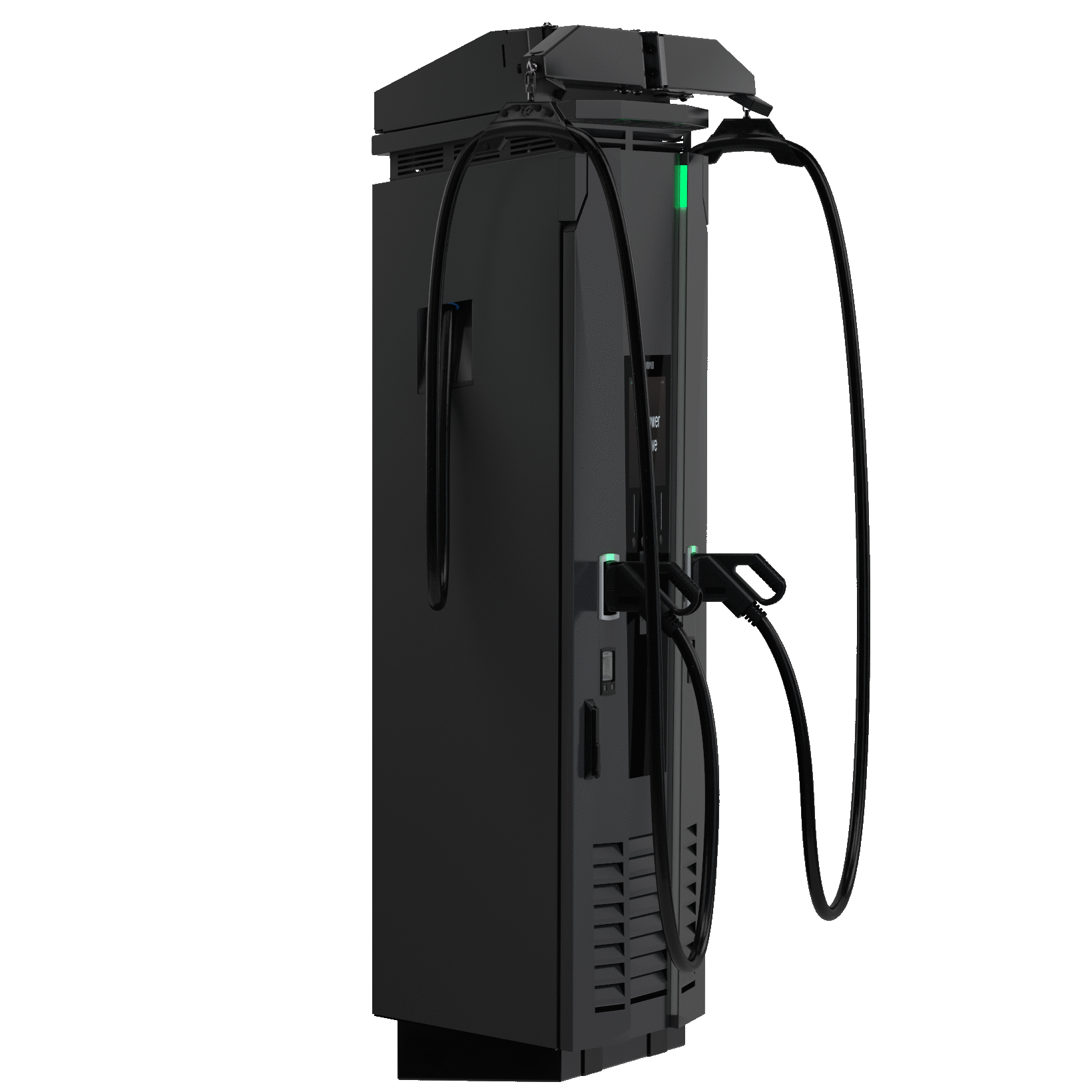

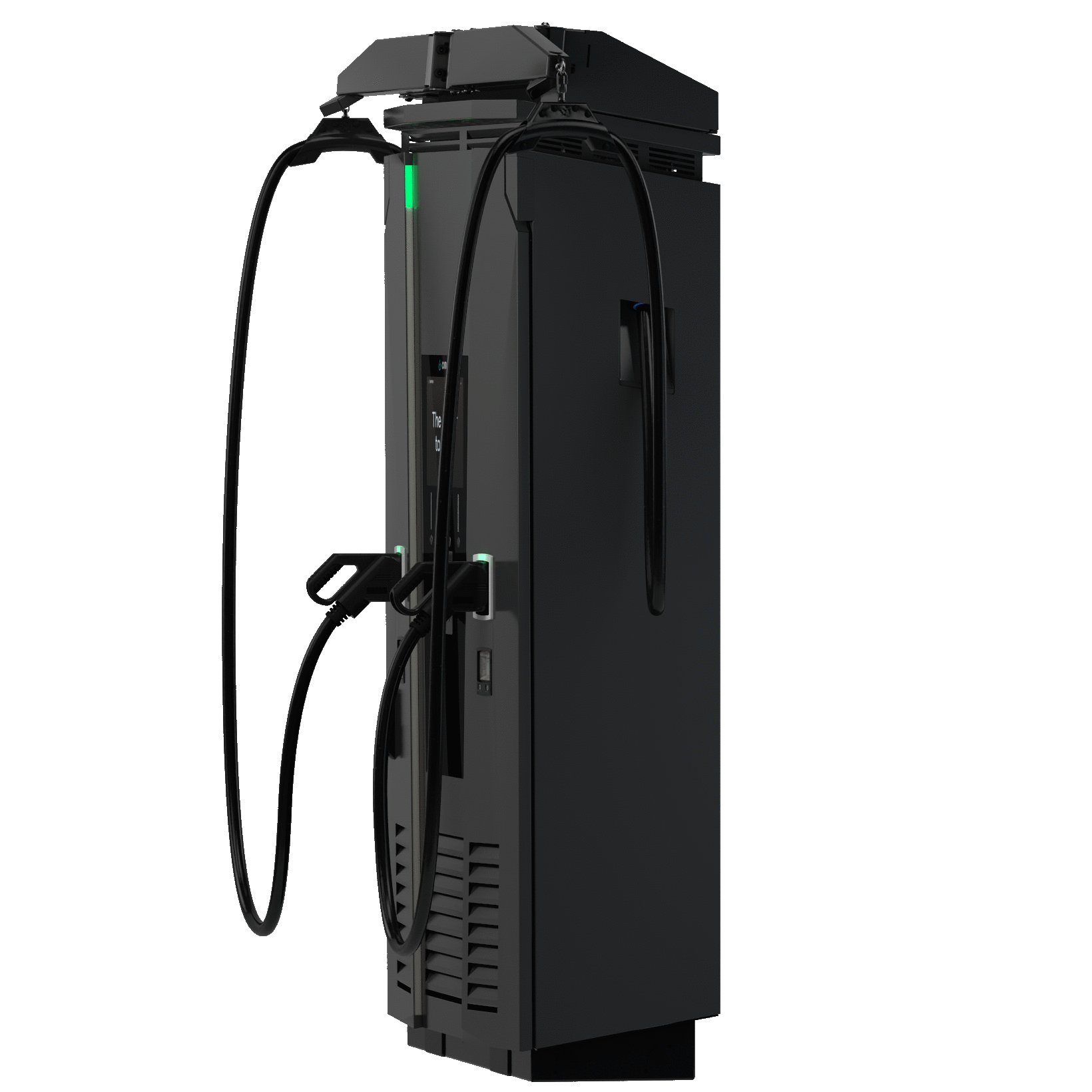

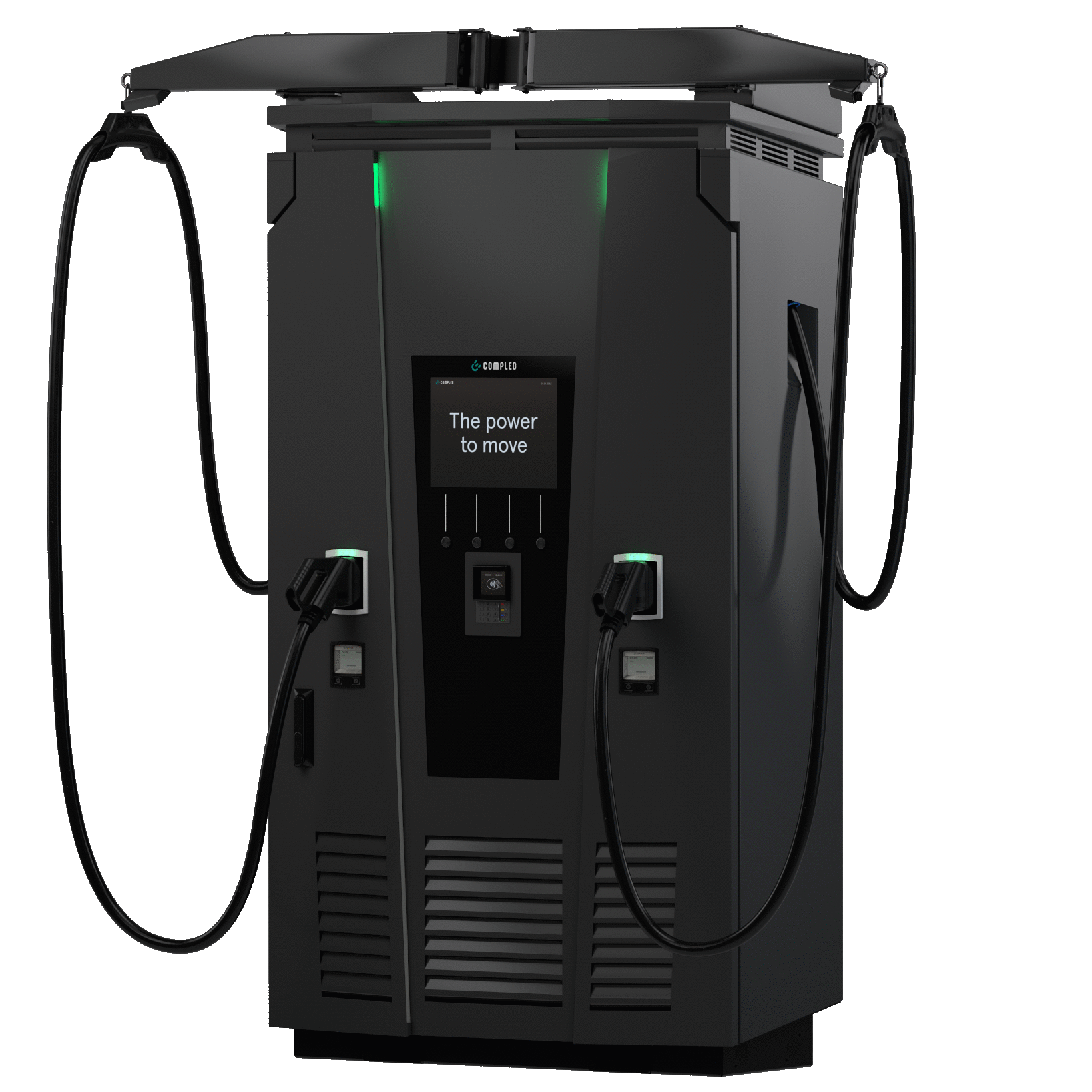

eTower 200

HPC charging stations
High power, greater flexibility

Powerful and reliable: The eTower is your future-proof high-power charging solution. It is particularly flexible to install and at the same time very easy to use barrier-free.

  • Charging of two vehicles with a total of up to 200 kW DC
  • More locations for ultra-fast charging thanks to flexible installation
  • Particularly low noise emissions for installation in noise-sensitive areas
  • Intuitive operation including payment terminal
  • LED charge level indicator, high visibility even from afar
  • Online connection via LAN and 4G
  • Compliant with the German calibration law
  • ISO 15118-ready




Loading...

More locations for ultra-fast charging

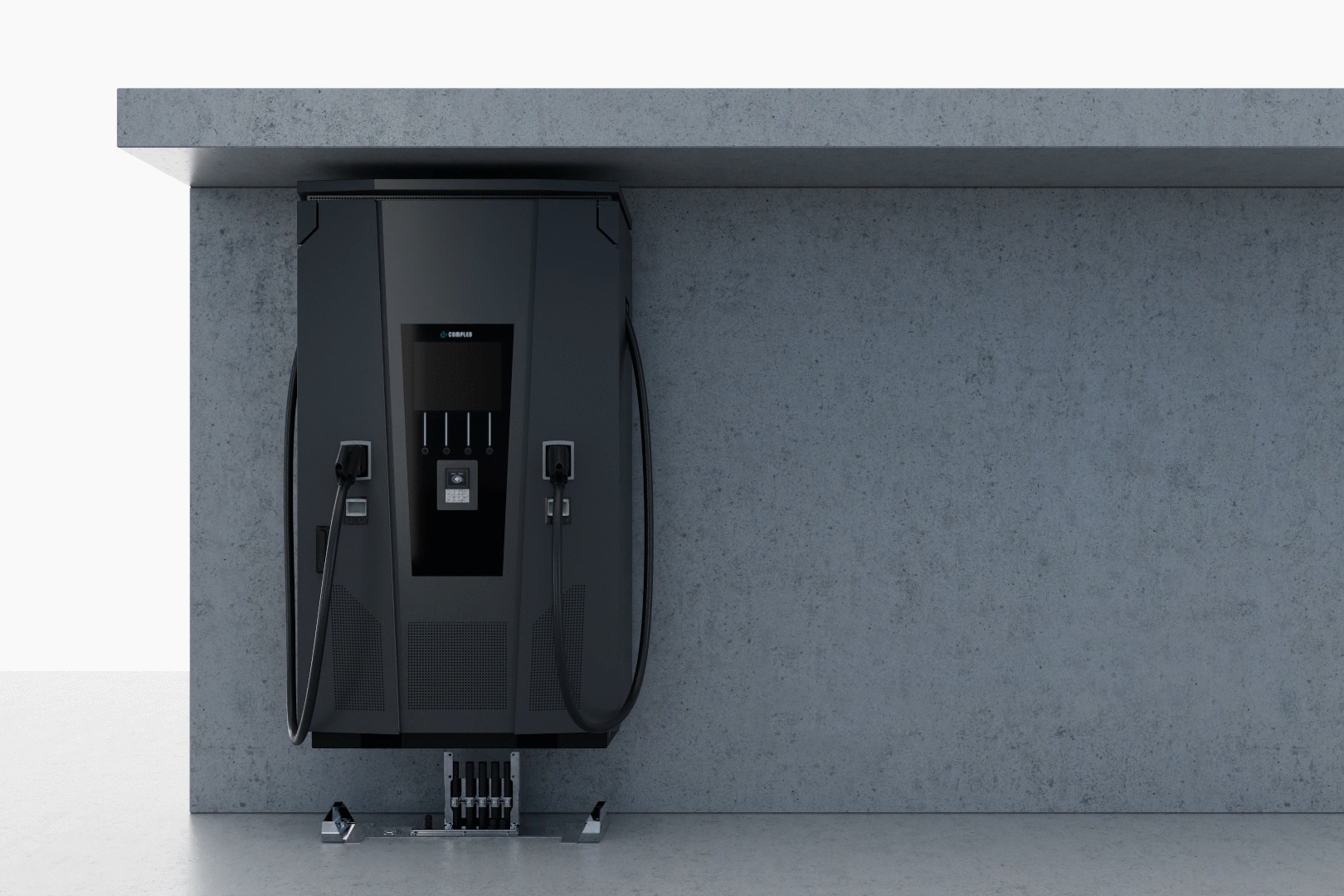

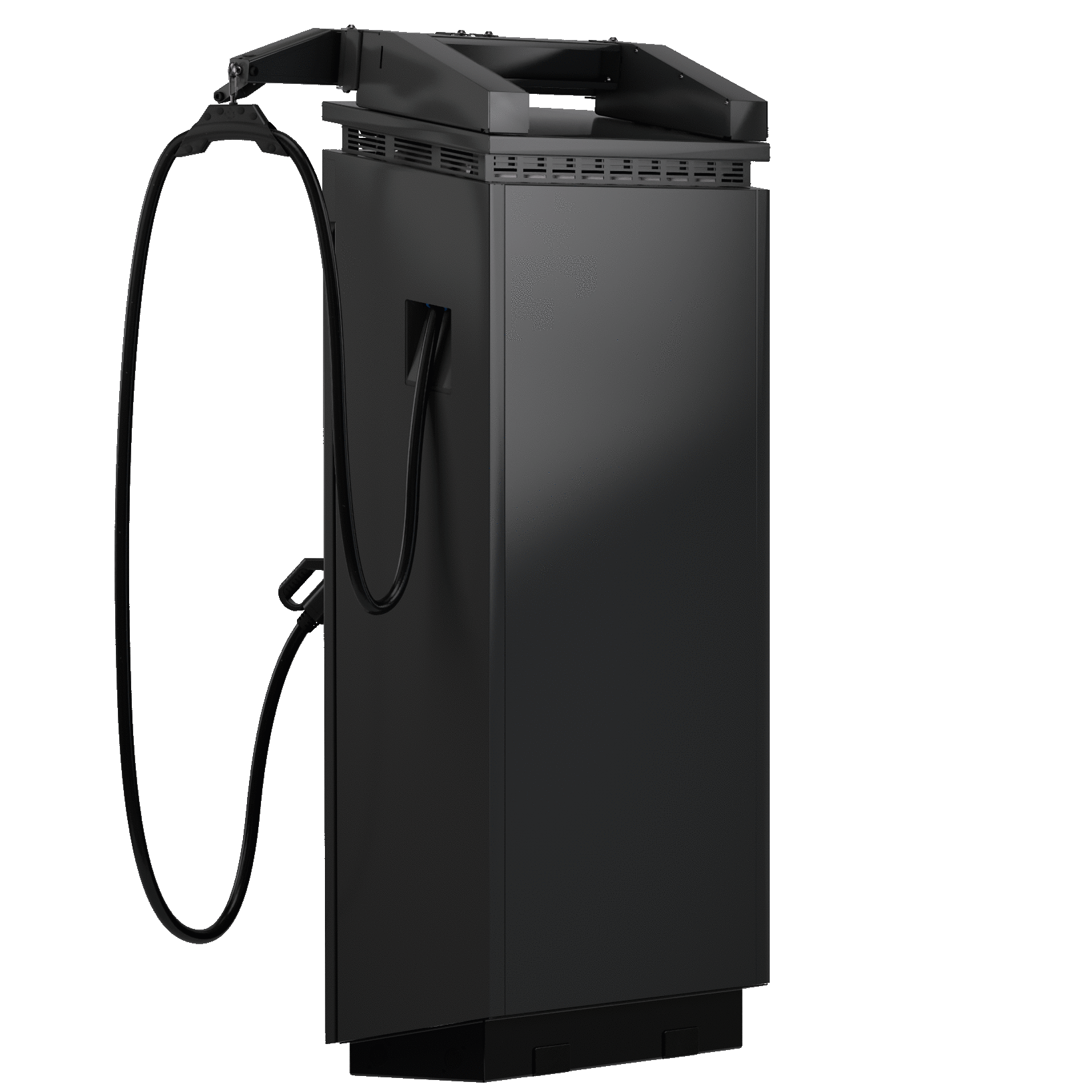

The eTower can be installed directly in front of walls and, as the quietest product in its class, is suitable for noise-sensitive areas. The eTower can even be installed in underground car parks thanks to its 2.00 m overall height and forklift device. Installation without cranes.

The eTower also supports compact installation with the smallest service area in its class. With a depth of only 450 mm and front access for service, the charger an efficient use of space. All components can be accessed directly thourgh a single door.

Loading...

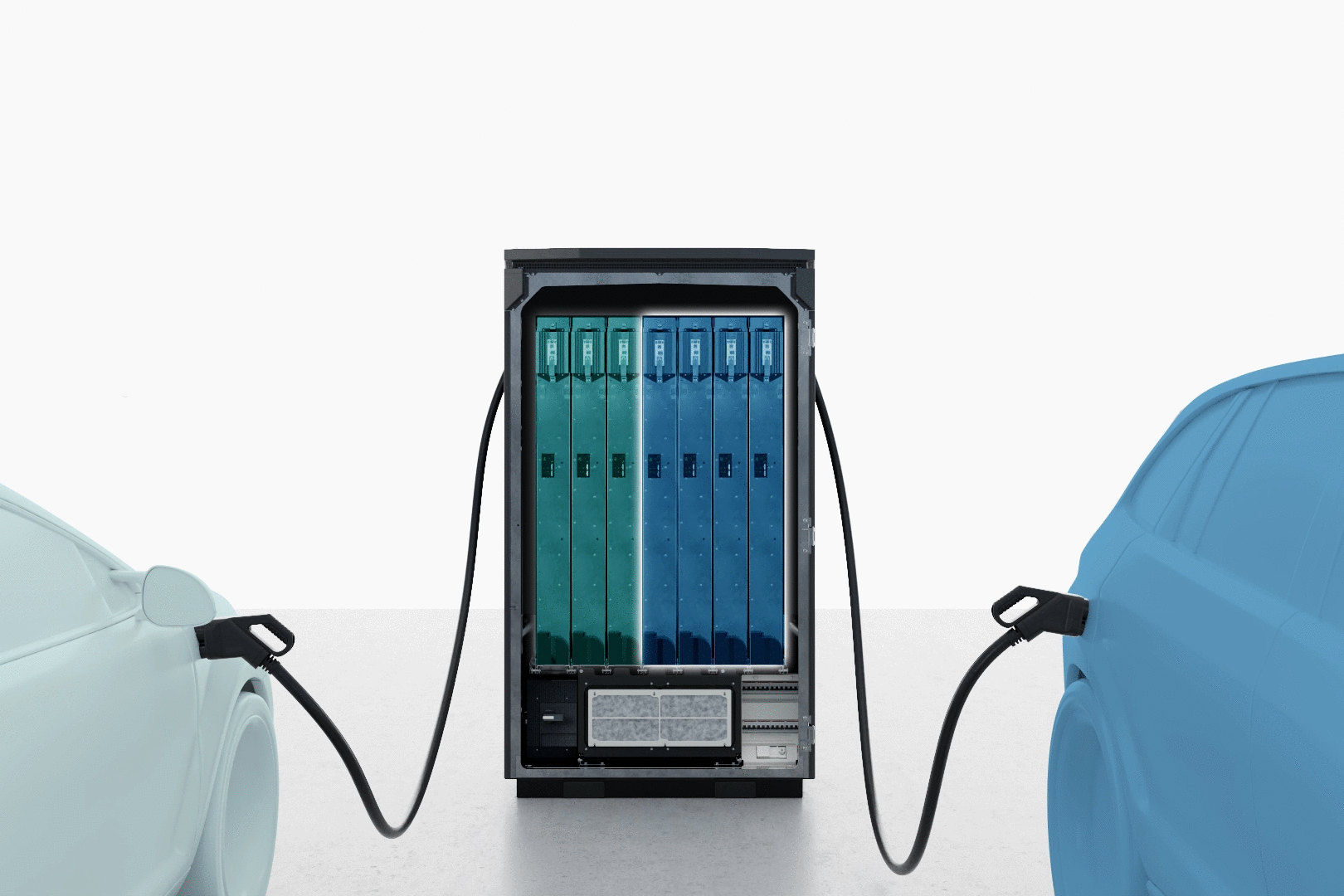

Modular design - small steps pay off

With seven power modules, the eTower can react flexibly to charging requirements. When two vehicles are connected, the power can be allocated modularly and dynamically in 29 kW increments. Higher charging speed for the vehicle, more kilowatt hours delivered.

And the power modules offer complete redundancy - each can take on the role of team leader. Should one fail, the HPC Charger remains available at all times.

Loading...
Maximum uptime thanks to complete redundancy
Loading...
Front access for optimum service operations
Loading...
HPC also in noise sensitive areas
Loading...

Intuitive and barrier-free handling

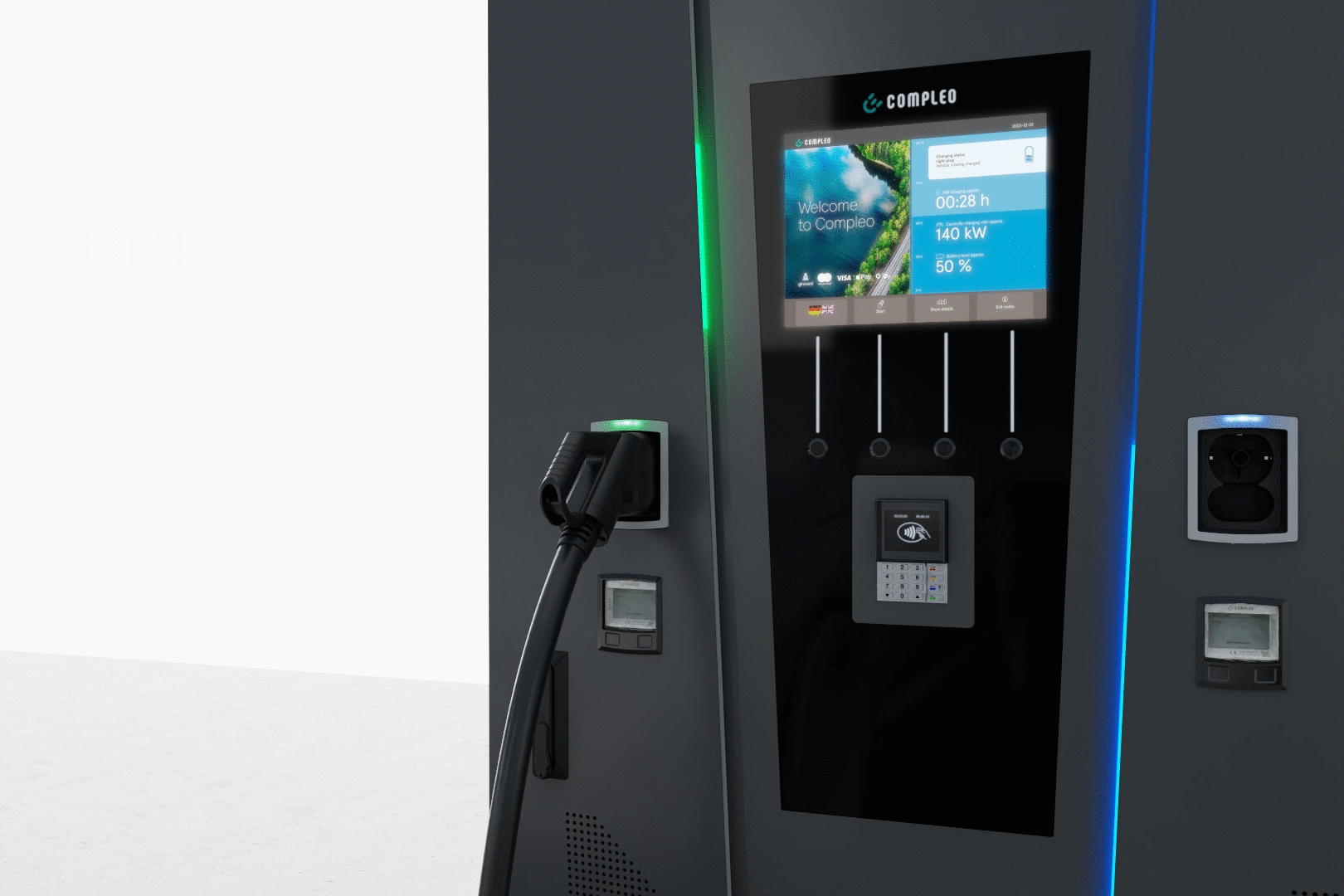

Recognise which charging point is free from a distance - no problem with the eTower LED display. The intuitive user guidance at the charging station guides the user step by step - not just via the display. Access is barrier-free.

With the integrated terminal, paying with the eTower 200 is even as easy as in the supermarket: by presenting a credit or debit card, you can pay directly, even without registration.

Loading...

Precise functionality – with any IT backend

The eTower can be controlled from any IT backend and the charger is connected via the OCPP 1.6J standard. Calibration law-compliant metering and billing is possible via SAM module and OCMF.



Compare our charging solutions



eTower 200

CITO 500

Maximum charging power per charging point DC: max. 200 kW flexible load distribution to both charge points AC: 22 kW; DC: 50 kW
Number of charging points 2 2
Charging connector 2x CCS charging cable (3,5 m); optional 2x CCS charging cable (6 m) with integrated cable management system 1x type 2 socket, 1x CCS charging lead (3.4 m)
Compliant with calibration law DC meter with SAM storage and display module AC: MID-compliant smart meter with SAM® storage and display module; DC: with SAM® storage and display module
Protection MCCB 400 A AC: RCD type A & DC residual current detection 6 mA; DC: LS C100
Communication interface to IT backends OCPP 1.6 JSON OCPP 1.6 JSON
Authorisation Free charging, RFID, smartphone app, credit card, girocard Free charging, RFID, smartphone app, optional: Direct payment via debit or credit card, Giro-e ready

Documents for download

With Compleo’s comprehensive documentation, planning to install the perfect charging system is easy. Put together your customised charging solution by simply selecting the charging station and accessories that best meet your needs.

Document Centre

Product name
eTower 200

Number of charging points
2

Charging connector
2x CCS charging cable (3,5 m);
optional 2x CCS charging cable (6 m) with integrated cable management system

Authorisation
Free charging, RFID, smartphone app, credit card, girocard

Display
Bright all-weather display, size: 15"

User interface
User instructions via display and four buttons

Maximum charging output per charge point
DC: max. 200 kW flexible load distribution to both charge points

Nominal voltage, number of phases, nominal frequency
400 V; 3; 50 Hz

Maximum input current
342 A per phase, configurable

Protection
MCCB 400 A

IT backend connection
OCPP 1.6 JSON

Meter / German calibration law
DC meter with SAM storage and display module

Montageart
Base mounted (bm)

Enclosure material
Stainless steel

IP protection class
IP54

Impact resistance
IK10

Weight
Approx. 750 kg

Lock
Swivelling lever, built-in space for one profile half cylinder

Environmental operating temperature
-25 °C to +40 °C

Approvals
CE, RoHS, REACH, GPSD, WEEE

Standards
IEC 61851-1;
IEC 61851-23;
IEC 62196;
ISO 14443A/B;
IEC 61851-21-2;
VDE-AR-N-4100

Measurements (H x B x T)
2,030 x 1,200 x 450 mm

Cable management system

Wire Hub
Connection Console
240 mm2

Foundation
